Description

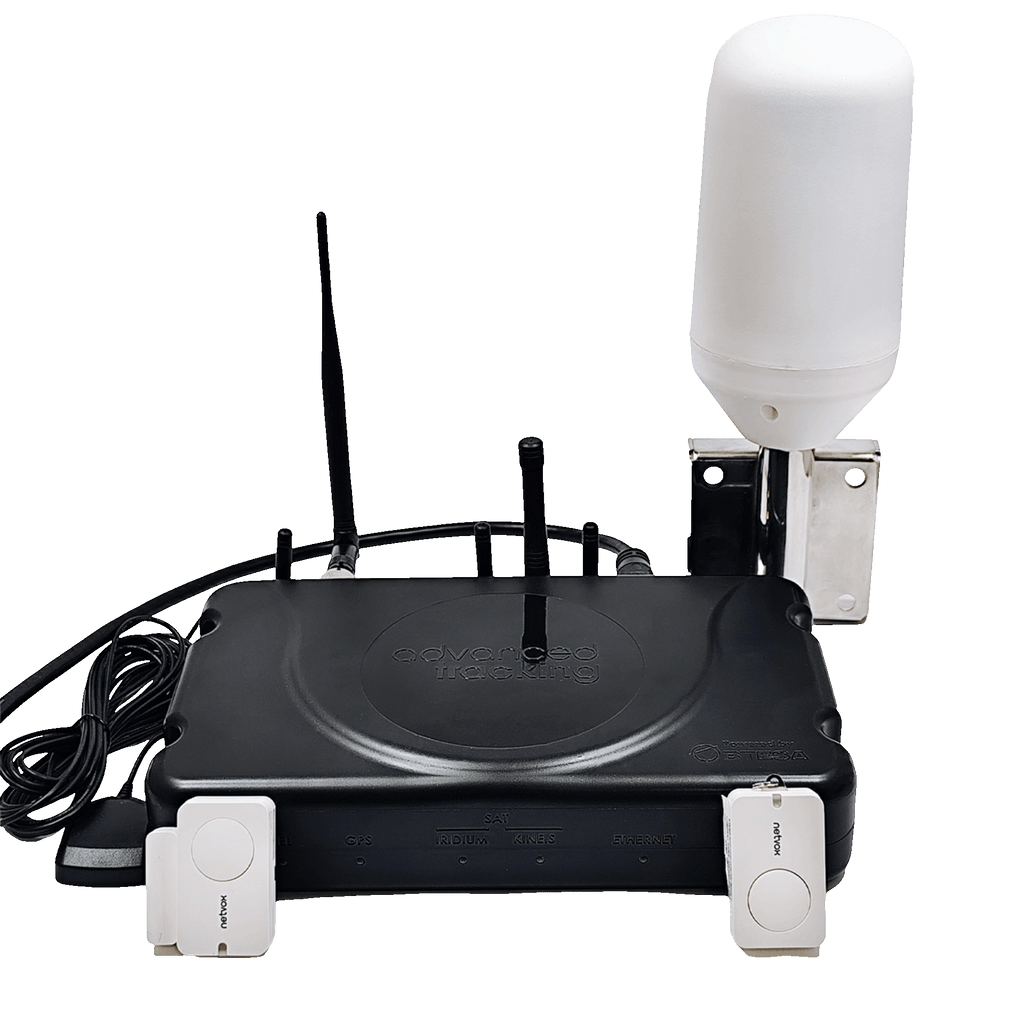

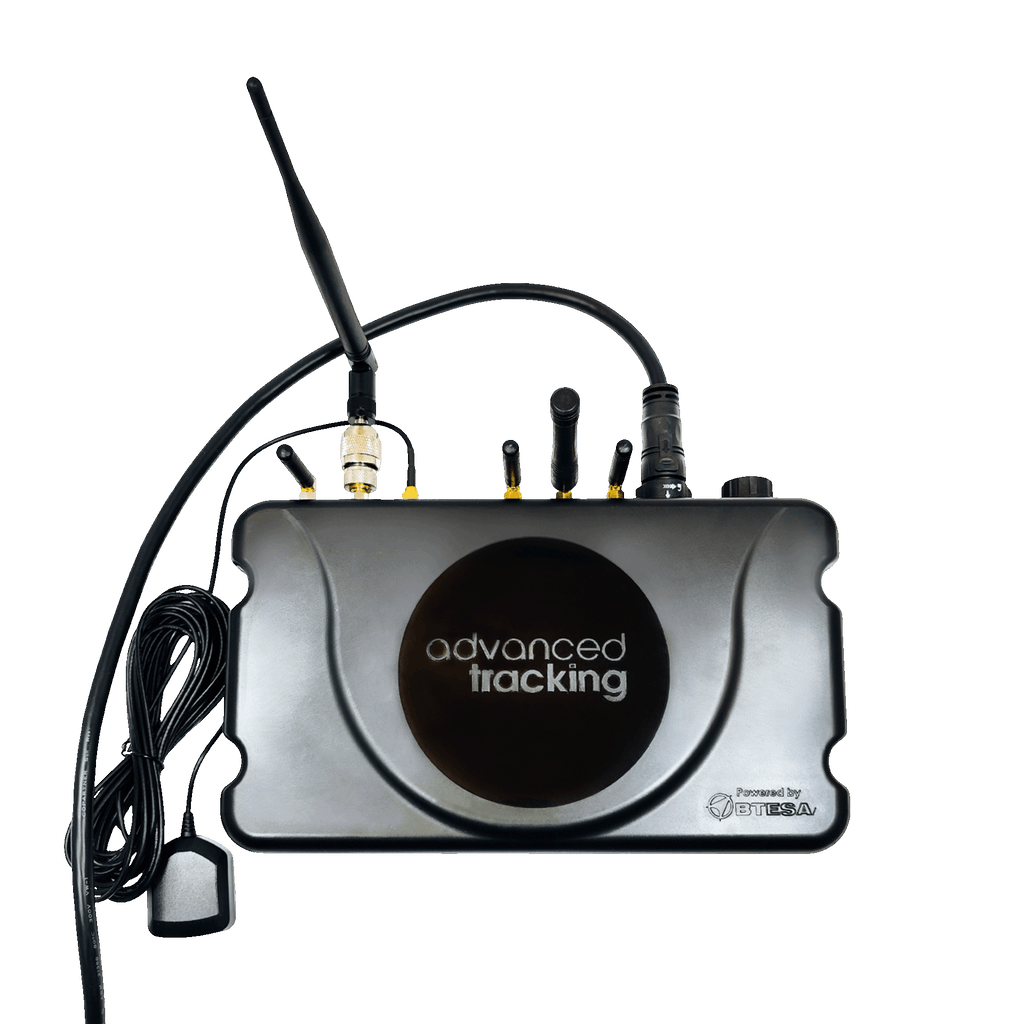

Hybrid all-in-one Tracking and communication system.
There are around 14 million yacht owners worldwide who share a common need: safety and communication when sailing on the high seas.
Yacht owners are looking for serenity, security, easy weather forecasting and the ability to communicate with family and friends.
Current solutions involve multiple systems that are complex to install and costly ( Tracking satellite beacon, alarm system, 4G router, wifi and satellite communication system), preventing users from sailing with confidence.
Our innovative solution is an intelligent "all-in-one" device .
It combines the best of satellite and cellular technology.
It guarantees unrivalled peace of mind for yacht owners worldwide.
With SmartConnect Gateway, you can :
SmartConnect is the ideal solution for boaters who demand the best. It's easy to install, easy to use and covers the whole world.

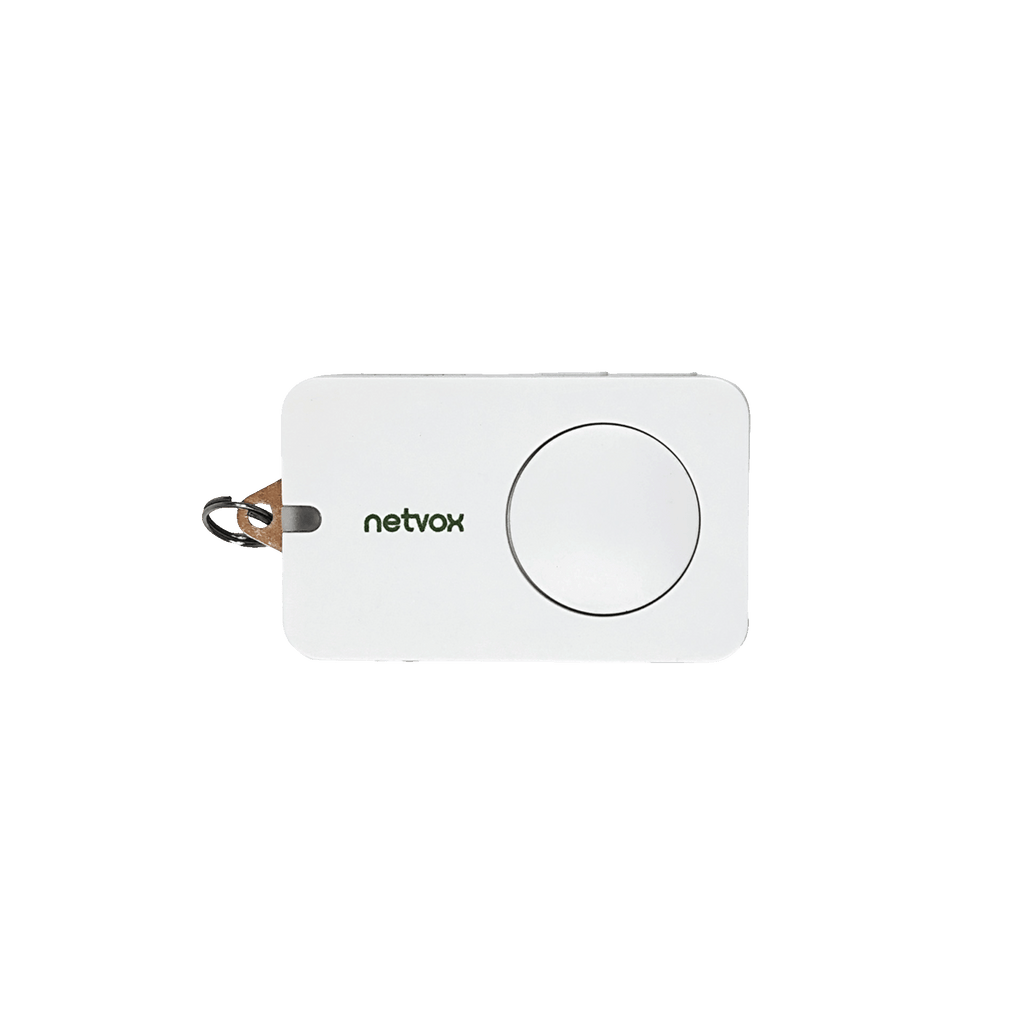

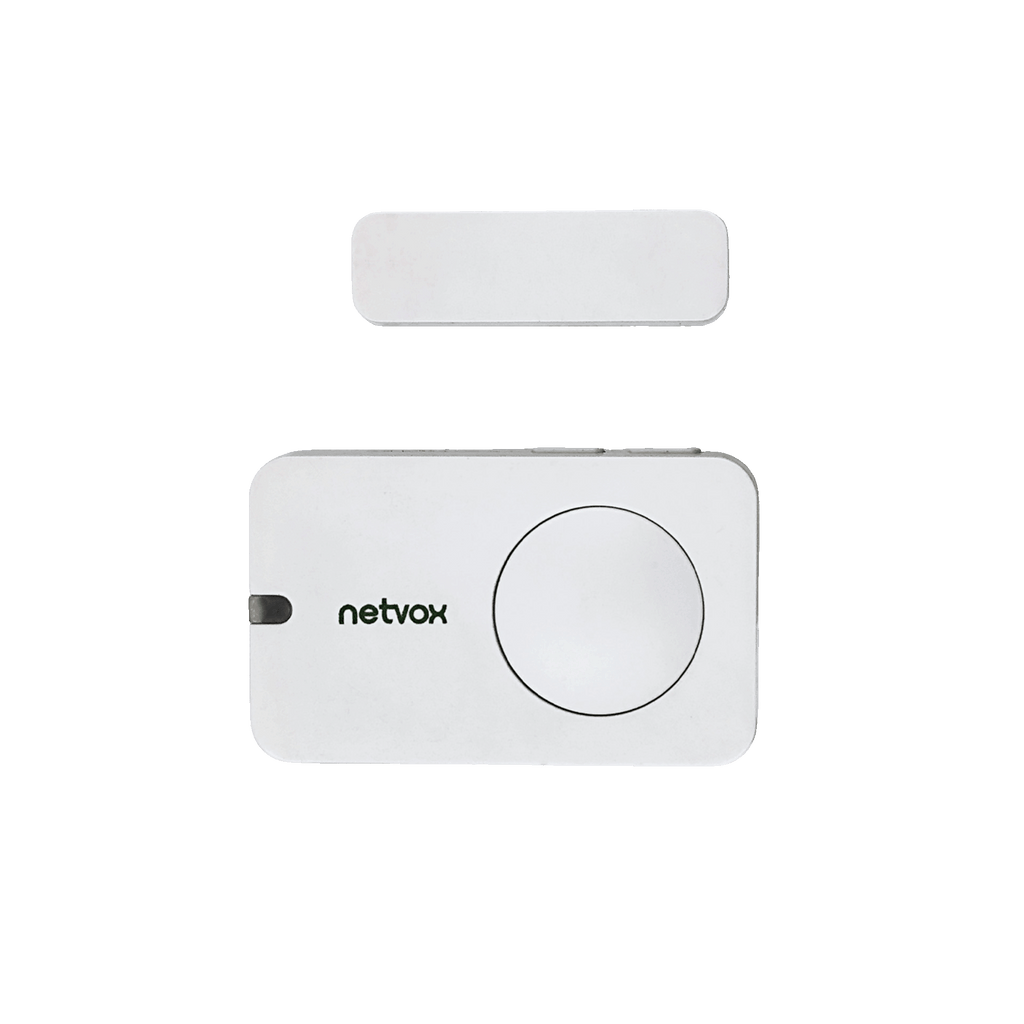

Sensors
- Wireless sensors using LoRaWan system technology.
- Autonomous sensors with internal batteries. Battery life: 2 years +.
- Easy to install in the boat - no cables.
- Up to 100 different sensors can be added. Any LoraWan-compatible sensor can be added.
- Long-range sensors.
- Encrypted communication between main unit and sensors.
- Wireless sensors for ocean data collection
Technical Information
GENERAL |
Communication |
4G LTE CAT-1 / Fallback 2G - Argos/Kineis satellite - Iridium Certus |
Battery |
+12V/+24V / Solar panel (VOC Max 30V) In operation: -20℃~ +60℃ |
|
POSITION
|
GPS receiver |
72-channel u-blox M8 motor GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, BeiDou B1I, Galileo E1B/C |
CELLULAR |
Data |
Wordwide 4G Lte 13 High-speed/ Fallback 2G |
|
Operating bands and carriers |
Europe and Asia: Cat M1 /NB1/NB2 |
SIM |
MFF2 (integrated SIM) |
|
OPERATING RANGE
|
Environment |
Temperature [ -40, +85 ; absolute accuracy ±0.5 °C ] |
CERTIFICATION |
Certifications |
In progress for CE and Iridium certification |
|
Network targets |
International/Europe: MVNO, Deutsche Telekom, Telia, Orange, Vodafone |
PHYSICS |
Dimensions |
280 x 180 x 50 mm |
|
Weight |
1200 gr |
ENVIRONMENT
|
Temp |
From -20°C to +45°C |
|
Humidity | 95% R.H. @ 50C non-condensing |
