LT-3100S GMDSS System - Basic


Price list:
Reduced price$6,557.00 USD

Postage calculated at checkout

Stock:
10 in stock, ready for delivery

Description

Iridium GMDSS Solution - LT-3100S GMDSS System

In 2018, the IMO's Maritime Safety Committee (MSC) recognized Iridium as a provider of GMDSS satellite services.

In early 2020, these GMDSS services, namely : Distress Alert, Safety Voice and Maritime Safety Information (MSI) will be available via the LT-3100S GMDSS system, a terminal developed by Lars Thrane A/S.

The LT-3100S GMDSS system is designed for all IMO vessels and will be an alternative to the Inmarsat C system. The LT-3100S GMDSS system meets all standards and certification requirements for maritime satellite communications equipment (MED, Wheelmark).

PERFORMANCE

The LT-3100S GMDSS system features voice and data capabilities with 100% worldwide coverage. The LT-3100S GMDSS system consists of a control unit, a handset and an antenna unit. A single cable connects the control unit to the antenna unit. Using standard coaxial cable, it is possible to achieve up to 500 meters of separation between the units, enabling the antenna to be installed in the best possible location, with a clear line of sight to the satellites.

The LT-3100S GMDSS system is designed for Iridium's GMDSS security services and can be used as the main satellite communications product on board ships, covering basic communication needs in terms of ship-to-shore connectivity. The LT-3100S GMDSS system also provides voice, SMS, data, vessel tracking and other Iridium services with competitive airtime rates, making it the ideal satellite communications product on board any vessel.

The LT-3100S GMDSS system is designed and manufactured for a demanding, harsh environment at sea and an operational temperature range of -40⁰C to +55⁰C (-40⁰F to +131⁰F).

INSTALLATION

The LT-3100S GMDSS system is very easy to install. Everything is included in the box to start installing and operating the LT-3100S GMDSS system. The control unit can be bracket-mounted or flush-mounted. The antenna unit can be installed using a pole bracket for 1.5″ or 2.0" pipes. The control unit features a large 4.3″ TFT display, from which the system can be operated quickly and easily. The integrated web server can be used for service and maintenance.

Over 40 years of experience have gone into the design and construction of the LT-3100S GMDSS system, whose performance and specifications are outstanding.



Basic Pack :

  • LT-3110S control unit
  • LT-3120 handset
  • Cradle LT-3121
  • LT-3130 antenna unit
  • Mounting bracket, control unit
  • Power cable, 3m
  • A4 stainless steel mounting screws
  • Operation and installation manual
  • Unit test sheets

Main features :

  • SOLAS GMDSS approved (sea areas A1, A2 and A3)
  • 100% worldwide coverage of distress situations
  • Alert and distress call
  • Security call and security messaging
  • Maritime Safety Information (MSI)

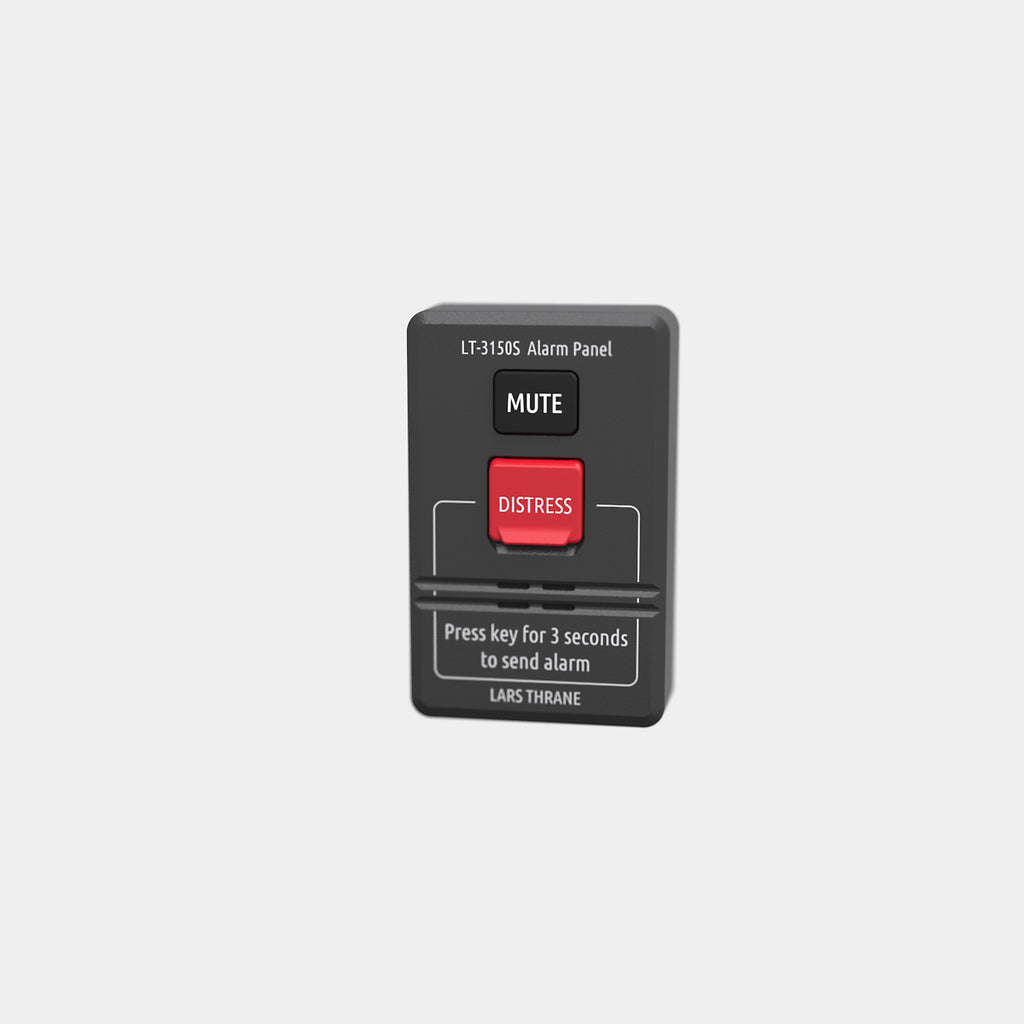

  • Remote alarm panel support
  • GMDSS printer support
  • Support for gateway alert management (BAM)
  • Ship Security Alert System (SSAS)
  • Long-range identification and tracking (LRIT)
  • Voice, SMS and data via modem
  • Single-antenna cable solution (up to 500 m)
  • High-performance GNSS/GPS receiver
  • Web server for configuration and maintenance
  • MED B+D module, RED(CE), FCC, ISED, ROHS2, Iridium
